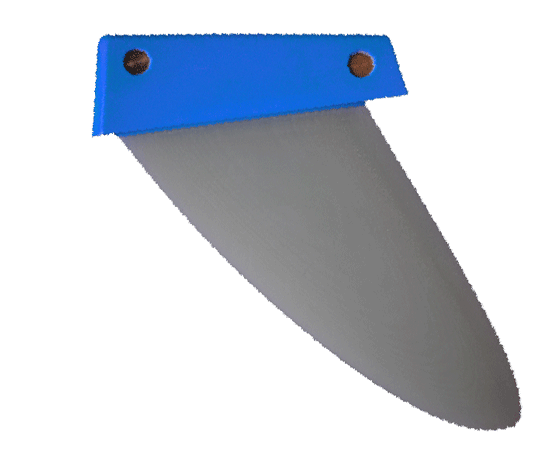

Tribal Asy Speed

Beschrijving

KA sail released the first ever working production asymmetric speed fin in 2006, with superb results and it is still an outstanding performer up to 50kts, still claiming national records and holding GPSSS outright speeds right up until the canal in Luderitz opened up a new era in windsurfing records.

The design brief at the time was to make a fin that could easily get to 50kts. It was the first production fin to do so back in 2009.

Why Use Asymmetric Fins?

The benefit of a correctly designed Asymmetric fin is that on the “On” side the maximum available lift can be a lot greater than an equivalent symmetric fin with the same top speed capability, and also the drag is appreciably lower. So it’s a win-win for really high speed sailing, and you can get away with a lower surface area.

The downside is sailing the other tack, where the maximum lift is significantly diminished.

Why a Tribal Asy?

There are many trade-offs in fin design, especially when it comes to doing really high speeds. Basically you need to use thinner profiles as the design speed goes up. Also the more asymmetry (camber) you put into a fin, the thinner it has to be. There is less margin for manufacturing tolerances, and structural limits are quickly reached. There is also a fundamental trade-off between low speed performance and high speed capability. The details of this are beyond the scope of this introduction.

This creates a considerable design challenge. It’s easy to add some camber and make a fast fin by flattening one side of a standard foil, but what you end up with is a sub-optimal fin that will have higher drag than necessary. It won’t be useable on the other tack, or at best will be very difficult, and it’s likely to be average at both low speeds and high speeds for its thickness.

So with these trade-offs in mind, we set to work on the best all-round shape to accommodate these issues, and found a nice balance that sacrifices none of the “On” tack performance, extended out to significantly higher speeds from the earlier KA series. The “off” tack performance is remarkable for an asymmetric fin, and offers an easy ride back upwind without the constant spinouts and crashes associated with other designs.

On the run these fins offer superb low drag performance and confidence to break records.

The fins are available for both tacks.
